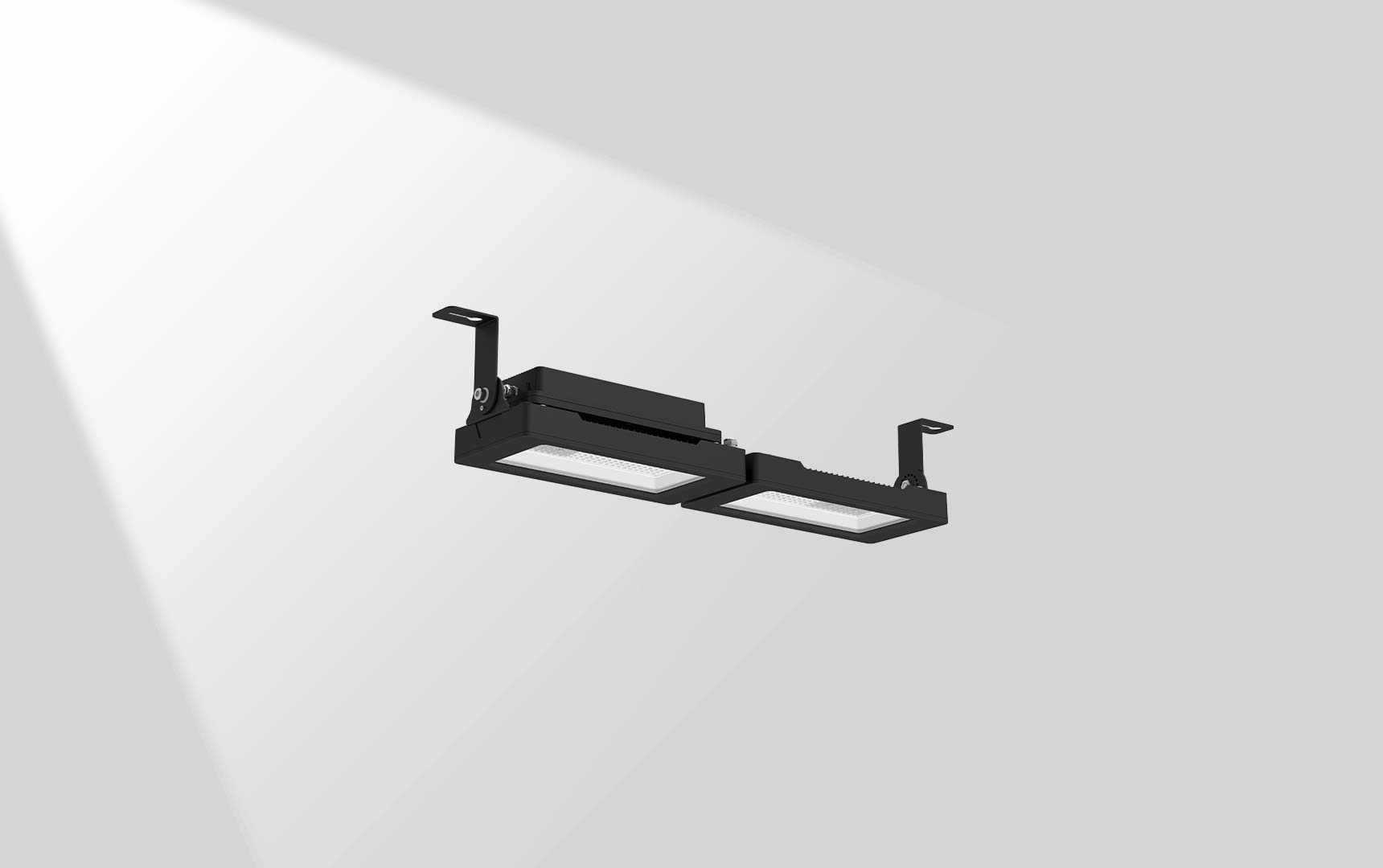

LHB01-Series

Up to 170lm/W

LHB01 Series is cost-effective LED Flood Light with combination of high performance, offering 170lm high lumen output with Asymmetric & Symmetric optics.

Power Supply

Partnering with reputable brands, we can fulfill your specific needs, whether it's a specific voltage or current level or compliance with regulations. We also provide advanced dimming capabilities, including 0-10V dimming and DALI-2 function, giving you greater flexibility and control over your lighting.

Multi-angle Display

Choose a 120°, 90°, 60°, 30° or TYPE2 lens.

4KV-Line-Line 4KV-Line-Earth

There is enough space in the power supply cavity of the product, and lightning protection device can be additionally designed to avoid severe weather such as thunderstorms.

Mounting Options

A variety of installation options and angles are available on site to achieve the best light measurement.

Motion sensors options

Applications like warehouses, distribution centers, production facilities and other industrial spaces with occupancy less than 50% and high ceilings (15 – 45 ft) are ideal environment for sensors. sensors help in save energy costs by delivering light only where you need it, when you need it.

Detail Parameters

Additional information

Series

LHB01-Series

Power

100W, 120W, 200W, 240W, 300W

Efficacy

170lm/W, 150lm/W

LED Driver

ZHPOWER

CCT

3000K-6500K

Beam Angle

60, 90, 120

CRI

80, 70

Operating Temperature

-30°C to + 45°C

Mounting Option

Pendant mounting, Ceiling mounting

IP/IK Rating

IP65, IK08

Warranty

5 Year Warranty
